Huawei Genius Boy Zhihui Jun makes his own robotic arm

by Amit
October 8, 2021
in Huawei News, News
0
Huawei Genius Boy Zhihui Jun makes his own robotic arm

Huawei Genius Boy Zhihui Jun makes his own robotic arm

607
SHARES
3.4k
VIEWS
Share on FacebookShare on Twitter

Huawei recruited 8 “genius teenagers” in the past year, and news with a starting salary of one million rushed into hot searches. In the following two years, the talented teenager’s program continued to recruit. It is still from the talented young man Zhihui Jun from Huawei or the most complicated kind of projects he has done so far. This Huawei Genius Boy Zhihui Jun makes his own robotic arm. Let’s explore deeply.

Stitch the grapes:

You might also like

Huawei IdeaHub Board 2

Huawei launches IdeaHub Board 2 65-inch collaboration tablet

June 25, 2022
Getting started with your Huawei FreeBuds 4i

Getting started with your Huawei FreeBuds 4i

June 25, 2022

Zhihui Jun makes his own robotic arm image 1

After the “grape bandaging”, it originally split into a small mouth, and became like this:

Zhihui Jun makes his own robotic arm image 2

All the above processes can be done remotely and in real time. Its name is also very interesting-it’s called Dummy.

Zhihui Jun makes his own robotic arm image 3

But after all, Zhihui Jun, who has the aura of “Wild Iron Man at Station B”, said that this is his most complicated project (takes 4 months), and the degree of hardcore is definitely more than that. The real situation is – this robotic arm is all made by Zhihui Jun, both inside and out!

The robotic arm that Zhihui Jun wants to build has a variety of interactive methods. For example, replace the end of the robotic arm with a “force feedback gripper”, and it becomes a robotic arm that can grip potato chips in seconds.

Zhihui Jun makes his own robotic arm image 4

In addition to the “force feedback gripper”, if it is replaced with a different effector, the results that can be achieved will also be different:

  • Install the “laser”, you can achieve three-dimensional engraving
  • Install “brush”, you can do calligraphy and painting
  • Install a small “spindle” that can be used as a 6-axis engraving machine

Zhihui Jun makes his own robotic arm image 5

And all of the above shows are-synchronized reality! In addition, Zhihui Jun also made many different ways of interaction. For example, combined with more cutting-edge technology, augmented reality (AR)-the real “where to play”.

There is also a way to open it through the teach pendant. And this teaching device is also from the hand of Jun Zhihui, in his words: Wherever there is me, there is a screen.

Zhihui Jun makes his own robotic arm image 6

This is the wireless smart terminal designed by Zhihuijun, and it is also the “companion” of this robotic arm.

It can be connected to the robotic arm through low-power Bluetooth and non-inductive connection, and after the connection, it can display various status information of the robotic arm in real time and switch various functions. Of course, Mr. Zhihui also made a more “Yangjian” graphical method.

Zhihui Jun makes his own robotic arm image 7

How to build Iron Man’s robotic arm?

This cool-looking “hand” is a small, high-precision 6-axis robotic arm.

On the whole, the construction of the robotic arm is mainly divided into four parts: the robotic arm design, closed-loop servo, controller and spatial positioning device, which correspond to the torso, heart, cerebellum, and eyes of the robot, respectively.

Robotic arm design refers to the “torso” of the robotic arm, the necessary steps for the robotic arm to move stably, including mechanical analysis, appearance design (3D modeling), material selection, etc.

Of course, the design here is not so easy. There are more than 150 editions of the manuscript alone:

Zhihui Jun makes his own robotic arm image 8

In order to ensure stability + cheap and beautiful, the final robot arm body is processed by aluminum CNC (numerical control) (to ensure stability), and the decoration is made by 3D printing (cost saving).

Among them, the CNC part was made by Zhihui Jun, the UP master @XIKII who “has a factory in the house”. All 8 metal parts took a total of half a month. The final appearance is designed by Aunt Jiang (China Red & Iron Man Red), not to mention it looks pretty.

The closed-loop servo, which is the “heart” of the robotic arm, is used to provide the power for the robotic arm to work.

Specifically, the software includes FOC algorithm, absolute value encoder & PID algorithm, CAN bus communication protocol and other parts. In hardware, in addition to the selection of materials such as motors, it also includes details such as heat dissipation.

Generally speaking, the robot arm will use a brushless servo motor, but here it is indeed relatively large.

As Zhihuijun wanted to make a relatively small manipulator, he finally adopted a stepper motor with a zero-backlash harmonic reducer. The single driving effect looks like this:

Since it is a 6-axis, in the end, 6 stepper motors + 6 harmonic reducers are used as a whole, and the software design forms the “heart” of the robotic arm.

The controller refers to the “cerebellum” of the robotic arm, which is used to control the actions of the robotic arm to achieve various functions. Yes, in addition to wired control, Bluetooth, WiFi, 2.4G can also control this robotic arm~

Finally, there is the spatial positioning device, that is, the “eyes” of the robotic arm, which are used to allow the robotic arm to “see” and operate the tasks that need to be completed.

This includes our common binocular vision algorithm, AHRS system and force sensor system, etc., which are all completed in this step.

That’s right, the robotic arm designed by Zhihuijun is not just a simple operation of “input tasks and complete”, but an “intelligent manipulator” that can truly receive tasks from multiple angles and process them in real time.

Simply put, it is to use binocular vision algorithm to recognize, and then use AI algorithm to implement operations such as pose estimation:

Zhihui Jun makes his own robotic arm image 9

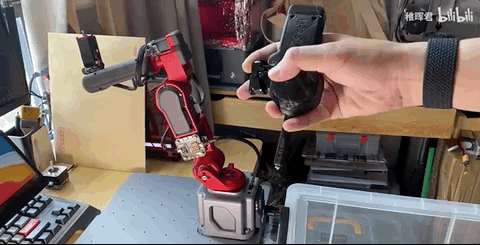

After being mounted on the robotic arm, the “hand” can complete a series of complex operations according to human actions (the controller is modified from the PS5 handle):

Zhihui Jun makes his own robotic arm image 10

Of course, after operations such as software de-shake, remapping of motion range, and strong torque enhancement, the robotic arm can perform operations with higher precision than hands (good news for hand-shaking players).

Finally, the software algorithms and hardware of these parts are assembled and debugged:

Zhihui Jun makes his own robotic arm image 11

Cost control within 10,000. As we all know, the price of robotic arms will rise with the improvement of accuracy.

The price of an industrial 6-axis robotic arm with a relatively good quality and an accuracy of 0.6mm will reach tens of thousands of yuan, while the price of an industrial robotic arm of the four major families with an accuracy of about 0.02mm directly rises to tens of thousands of dollars. .

Judging from the test results of Zhihuijun, the accuracy of the dial indicator is 0.01mm, and the end repeat accuracy is measured, and the accuracy directly reaches about 0.02mm: However, according to Zhihuijun, the overall hardware cost of Dummy is less than 10,000 yuan!

The project made this time is actually a birthday gift from Jun Zhihui to himself.

I wish my sincere birthday wishes~

Project address (to be sorted):

https://github.com/peng-zhihui/Dummy-Robot

Zhihuijun robotic arm video (authorized):

https://www.bilibili.com/video/BV12341117rG

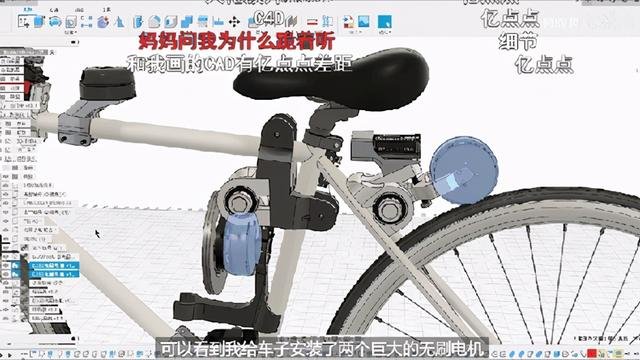

A few days ago, Zhihui Jun released a video ” I made my bicycle into automatic driving ” at station B , which caused heated discussions across the Internet.

Zhihui Jun cycle project

After setting up the “virtual accessories” on the computer, Zhihuijun started to operate, some components are processed by metal, some are 3D printed, structural parts assembly, circuit integration, and software adaptation are completed. This is how a brand new self-driving bicycle is completed.

(Via)
